Bilstein

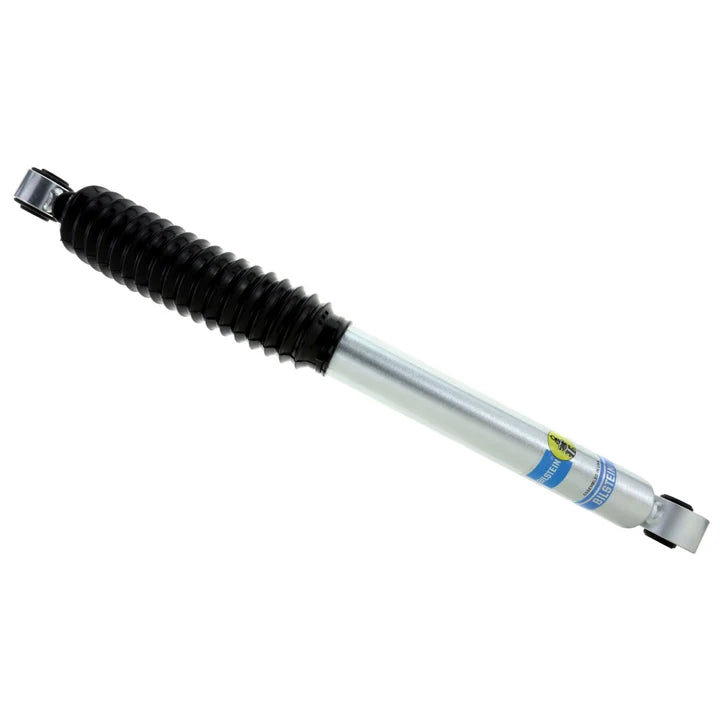

Bilstein B8 5100 - Suspension Shock Absorber

Name: Bilstein B8 5100 - Suspension Shock Absorber
Brand: Bilstein
SKU: 24-186742
Price: 123.00 USD
Availability: InStock

$123.00 USD

Sale Sold out

SKU:24-186742

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Specifications:

Part Number: 24-186742

Old Part Number: F4-BE5-D147-H0

Setting: 5100 Series

Position: Rear

Front Spring Type: Torsion Bar

Quantity Needed Per Vehicle: 2 (Sold Separately)

Rear Spring Type: Leaf

Descriptor: Excludes vehicles equipped with Quadrasteer; Rear Lifted Height: 0-1"

Finish: Zinc plated

Reservoir: No

Body Design: 46mm ID smooth body (Non-coilover)

Measurements:

Collapsed Length (IN): 16.14

Extended Length (IN): 26.15

Collapsed Length (MM): 410

Extended Length (MM): 664.2

Applications:

2001-2010 GM 2500/3500 HD (Non-Quadrasteer)

Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet. Shock Absorbers sold individually.

Manufacturer Warranty*:
Limited Lifetime
